Aluminum Air Battery


Schematic of multiple cell pile using copper foil on styrofoam which is used as an insulator between layers.


Students build a primary cell with aluminum foil, salt water and copper wire.


Essential Question:

How can we collect electrons from a metal as it oxidizes to produce useful electrical power?


This battery uses the oxidation of aluminum at the anode and the reduction of oxygen at the cathode to form a galvanic cell. In the process the aluminum is completely consumed to produce aluminum hydroxide. The metal air battery has a very attractive energy density because part of the reactants come from the air. They have been developed for long range power supplies for electric vehicles. For example rechargeable Li-ion batteries could be used for around town but aluminum air batteries could be used for 1000 mile range. The battery is then replaced and the aluminum hydroxide is re-processed to produce reduced aluminum metal. In a sense the energy for this battery comes from electricity consumed in the aluminum refining process.

The anode oxidation half-reaction is Al + 3OH   → Al(OH)3 + 3e −2.31 V.


A model pouch cell has layers consisting of aluminum, felt with charcoal, copper tape and an insulator made from styrofoam food trays.

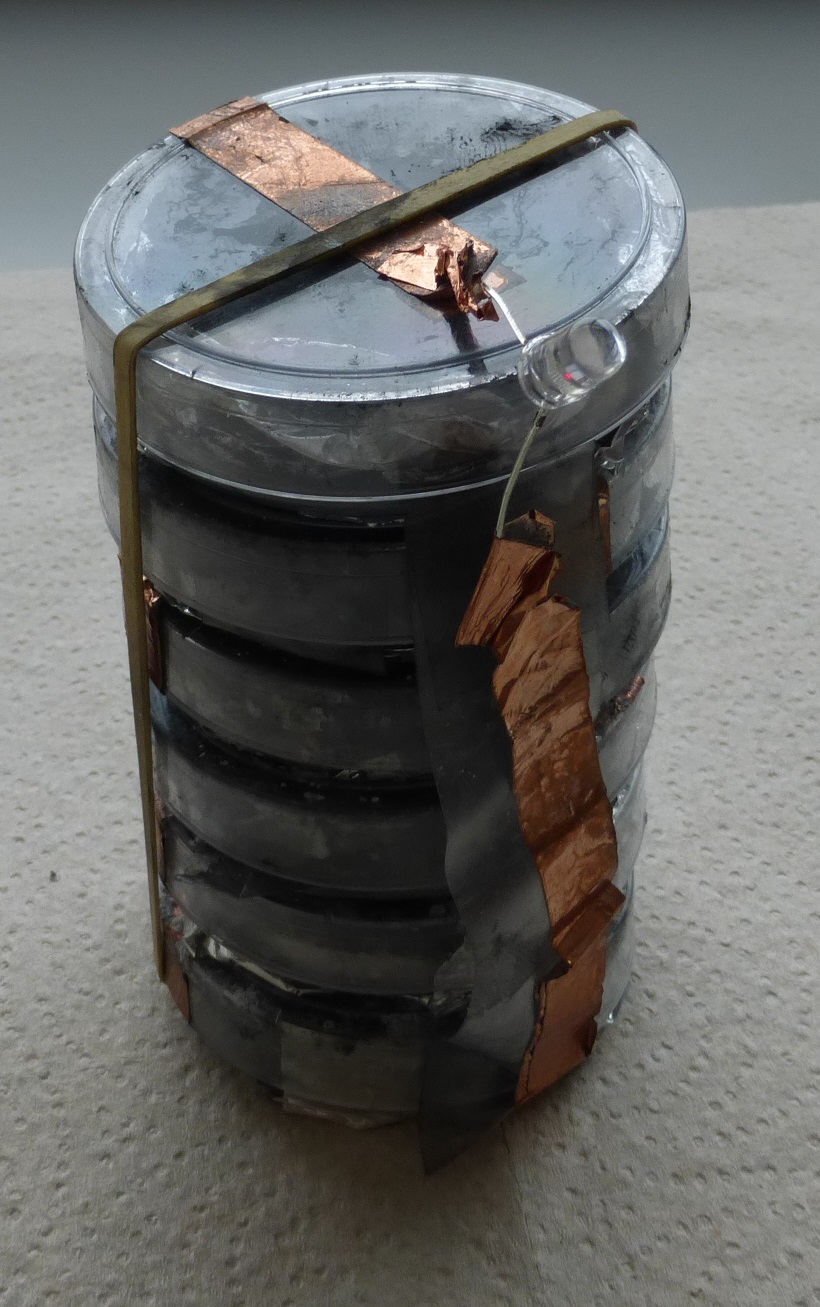

A stack of model coin cells are made from small petri dishes with aluminum and copper conductors around a carbon anode.

The cathode reduction half-reaction is O2 + 2H2O + 4e → 4OH +0.40 V.

The balanced equation is 4Al + 3O2 + 6H2O → 4Al(OH)3 + 2.71 V.

(The reaction improves if it is done in a basic solution that supplies excess OH ions. With potassium hydroxide electrolyte the 1.2 volts is produced with salt .7 volts per cell. Be very cautious if experimenting with KOH or NaOH electrolytes, use gloves and eye protection)

Research Connection:

Researchers are trying to find new chemistries for batteries that use earth abundant materials, are safe and reliable, and have a high energy density.  While this cell is not rechargeable it could play a role in electric vehicles.

NGSS Standards:

HS-PS3-3. Design, build, and refine a device that works within given constraints to convert one form of energy into another form of energy.
MS-PS1-2 Analyze and interpret data on the properties of substances before and after the substances interact to determine if a chemical reaction has occurred.


Grades: 7-12

Time: 1 hour


  • Aluminum sheet- pie plate or foil
  • Paper towel-or water color paper
  • Charcoal Briquette or activated charcoal ground to a powder
  • .5” Copper foil tape with conductive adhesive
  • Salt water (saturated) with a little sodium carbonate (washing soda)
  • Styrofoam container
  • Clip leads


Cup cell design

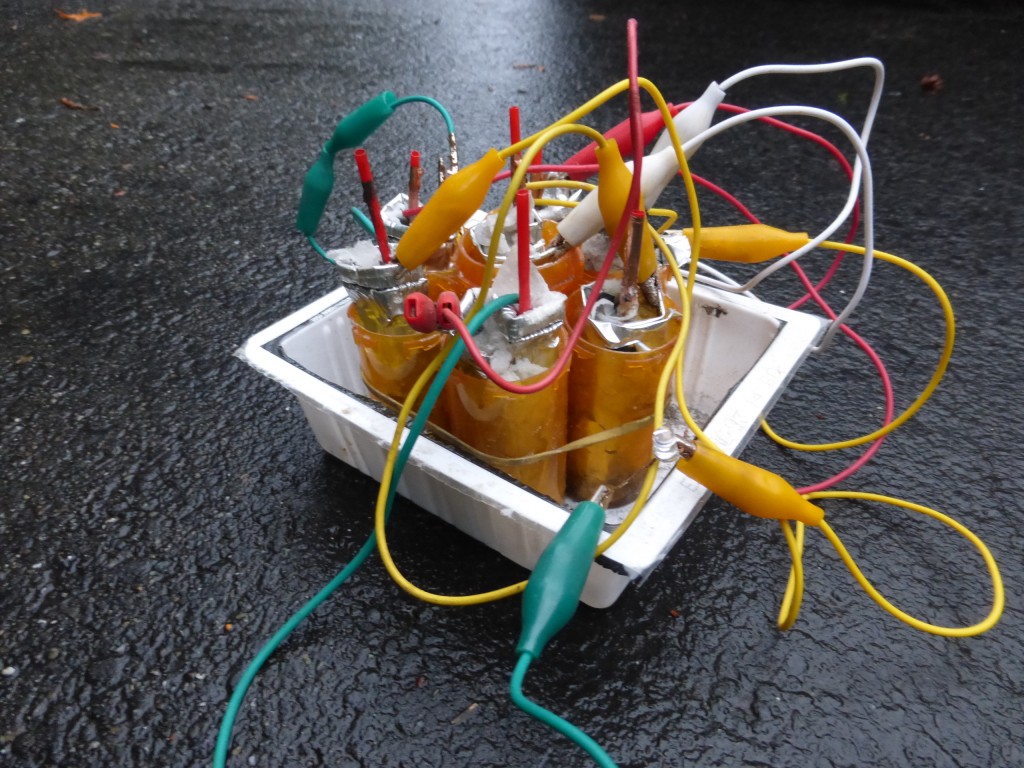

Individual aluminum cells are housed in old pill bottles and connected in series.

This format uses aluminum roll shaped cells that sits in individual cups containing electrolyte reservoirs. The electrolyte wicks up into the charcoal in the center and evaporates slowly and allowing air to penetrate the interior.

  1. Cut a 6” square of aluminum foil, plate or aluminum can. Sand the can to remove paint and plastic barrier on the inside.
  2. Place the aluminum on a soft surface and poke holes all over it to allow air to penetrate.
  3. Add a 6” square of paper towel on top of the aluminum.
  4. Add a ½” thick mound of ground briquette or activated charcoal about the texture of course corn meal. You can wrap the charcoal in paper and pound with a hammer to shatter the lumps.
  5. Place copper strip in the center of the mound so that it doesn’t touch the bottom and 2” sticks out above.
  6. Fold the paper towel over the charcoal pile at the bottom to prevent it from fall out later.
  7. Roll the aluminum around so that the copper electrode is in the center of the mound of charcoal and does not touch the aluminum. Tie the tube with a twisty tie or a piece of wire. The top of the tube should be open with the charcoal and copper wire exposed.
  8. Place the battery in a plastic cup.
  9. Pour saturated salt electrolyte into the charcoal core until you have about 1” at the bottom of the cup.
  10. Connect clip leads to the center copper lead and to the top of aluminum tube, and then to an electric meter.
  11. Connect several cup cells together going the copper lead of one to the aluminum lead of the next. Measure the voltage at the end of the chain as each cell in inserted. When you reach 2-3 volts you may be able to light the LED.
, Aluminum Air Battery

Teachers at Puget Sound Renewable Leadership Institute build aluminum air batteries. Photo by Bonneville Environmental Foundation

Thin battery sandwich design

This format looks more like a battery but is a little more fussy to build and will not run as long because the electrolyte dries out. It offers some interesting design challenges to consider how to make the technology practical.

  1. Cut 1” squares of Styrofoam from meat trays, 1” squares aluminum foil, plates or aluminum cans that have been sanded. Position the aluminum square on top of the foam square.
  2. Cut 1.4” x.5” long strip of copper foil or tape. Wrap this around the Styrofoam square so the sticky side wraps across the bottom of the Styrofoam and makes contact with the edge of the aluminum square on the top
  3. Cut 1” filter paper or paper towel and position this in the middle of the aluminum square being careful not to have it stick out beyond the edge of.
  4. Grind up the charcoal to make medium grain powder like cornmeal. Sprinkle a thin layer on to the top of the paper towel. This constitues one cell which should produce about .7 volts with saltwater electrolyte.
  5. Stack several cells together. On the bottowm have a long aluminum strip that sticks out as a contact. On the top have a square of foam and a long copper strip as a conductor. Carefully bind the stack with a rubber band.
  6. Connect the copper foil on the top and the aluminum foil on the bottom with clip leads to an LED and/or electric meter. Wet the exposed paper towel on each cell with the salt electrolyte solution until it will not absorb more.
, Aluminum Air Battery

First trial = aluminum foil, paper towel, carbon, copper and saltwater electrolyte. Credit:BEF

Design Questions to Explore

  • What voltage and amperage can you achieve?
  • What is the minimum voltage it takes to light an LED?
  • How can you increase the availability of oxygen to the cell?
  • Is there a limit to the series voltage a chain of these batteries can achieve?
  • How does the pH and concentration of the electrolyte solution affect the current?
  • Is it possible to “wake up” a cell after a few days if it stops producing?
  • What would be the advantage to using a flowing or circulating electrolyte?



      1. Wikipedia
      2. An Open-Ended Project: Building a High Performance, yet Simple, Household Battery
        • Ping Y. Furlan, Thomas Krupa, Humza Naqiv, and Kyle Anderson
        • Journal of Chemical Education 2013 90 (10), 1341-1345
      1. Fostering Innovation through an Active Learning Activity Inspired by the Baghdad Battery
        • Xu Lu and Franklin Anariba
        • Journal of Chemical Education 2014 91 (11), 1929-1933
      2.  Aluminum—Air Battery
        • Modesto Tamez and Julie H. Yu
        • Journal of Chemical Education 2007 84 (12), 1936A
      3. Phinergy Battery with Arconic


    You can also experiment with other types of electrochemical cells using different metals and household chemicals as electrolytes.
